Model |

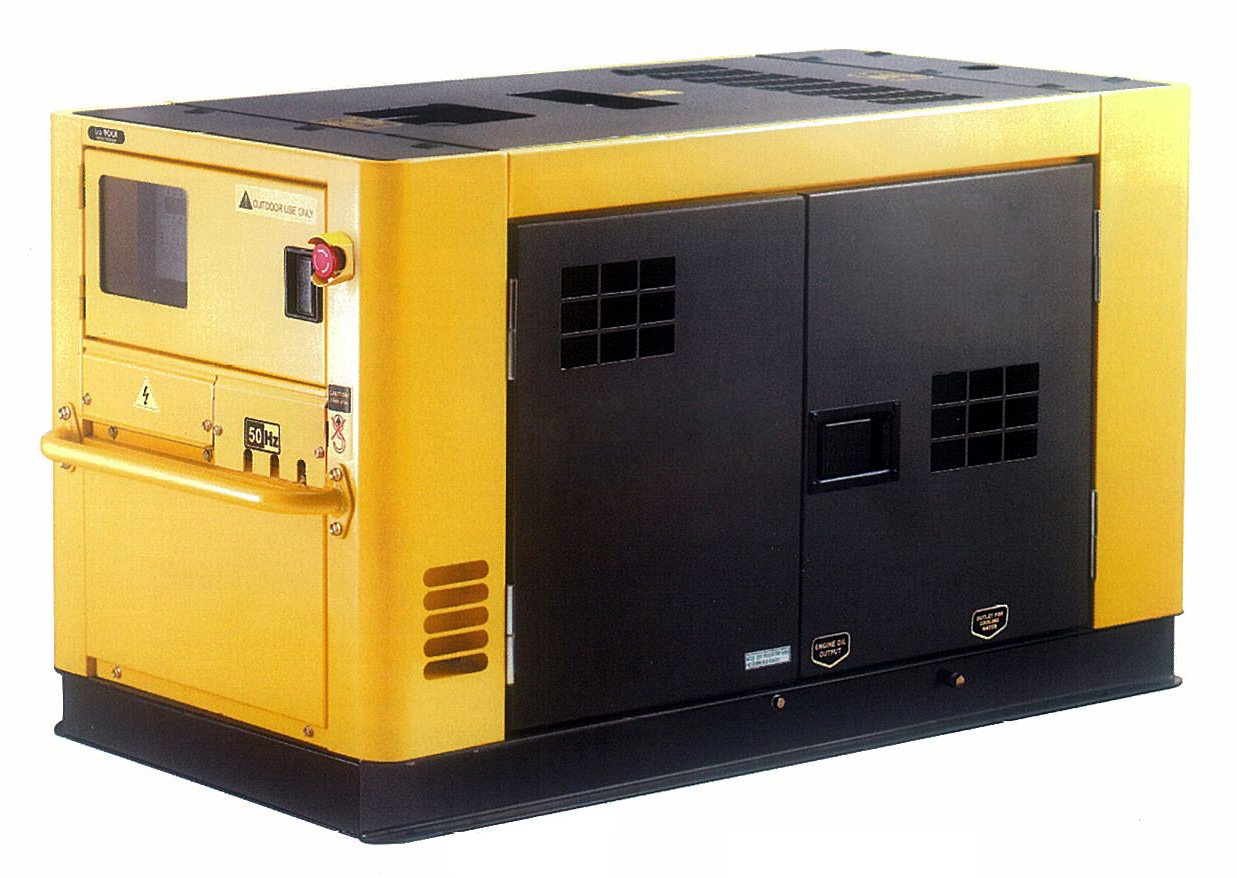

KHC12STA3 |
Rated frequency (Hz) |
50 60 |
Rate output (kVA) |
9.5 10.5 |
Max output (kVA) |
10.5 11.5 |
Rated voltage (V) |
230/400 240/416 |
Rated current (A) |
13.7 14.6 |
Rated rotation speed (rpm) |
3000 3600 |
Phase NO. |
Three phase "Y" type connection |
Power factor |
0.8 |
Insulation grade |
F |
Pole number |
2 |
Excitation mode |
Brushless self-excitation and constant voltage (AVR) |
Panel type |
Digital Panel |
Output |
Voltage (V) |
- |
| Receptacle |
Two single phase receptacles |
| Connection pole |
With |
| DC12V output |
Without |
Overall dimension: L*W*H (mm) |
1350*790*840
1200*650*760 (Without wheels & handle)
|
Dry weight (Kg) |
310 |
Working assorting weight (Kg) |
345 |
Noise level (7m) dB(A) |
72 |
Structure type |
Super silent |
Engine model |
KH2V80 |
| Engine type |
Two-cylinder, V-twin, four-stroke, swirl type |
| Cylinder NO.-bore*stroke (mm) |
2-80*79 |
| Displacement (ml) |
794 |
| Rated power (kW) |
12.5/3000 14.5/3600 |
| Compression ratio |
23:1 |
| Rated rotation speed (r/min) |
3000 3600 |
| Cooling system |
Water cooled |
| Lubrication system |
Pressure splashed |
| Starting system |
Electric starter |
| Fuel type |
0# (summer)-10# (winter)-35# (chillness) diesel |
| Capacity of cooling water (L) |
2.9 |
| Lube capacity (L) |
2.27 |
| Starting motor capacity (V-kW) |
12V 1.4kW |
| Charging generator capacity (V-A) |
12V 20A |
| Battery capacity (V-Ah) |
12V 60AH |
| Fuel consumption (g/kWĄ¤h) |
285 297 |
| Fuel tank capacity (L) |
25 |
| Continuous running time (hr) |
7.5 |
