Model |

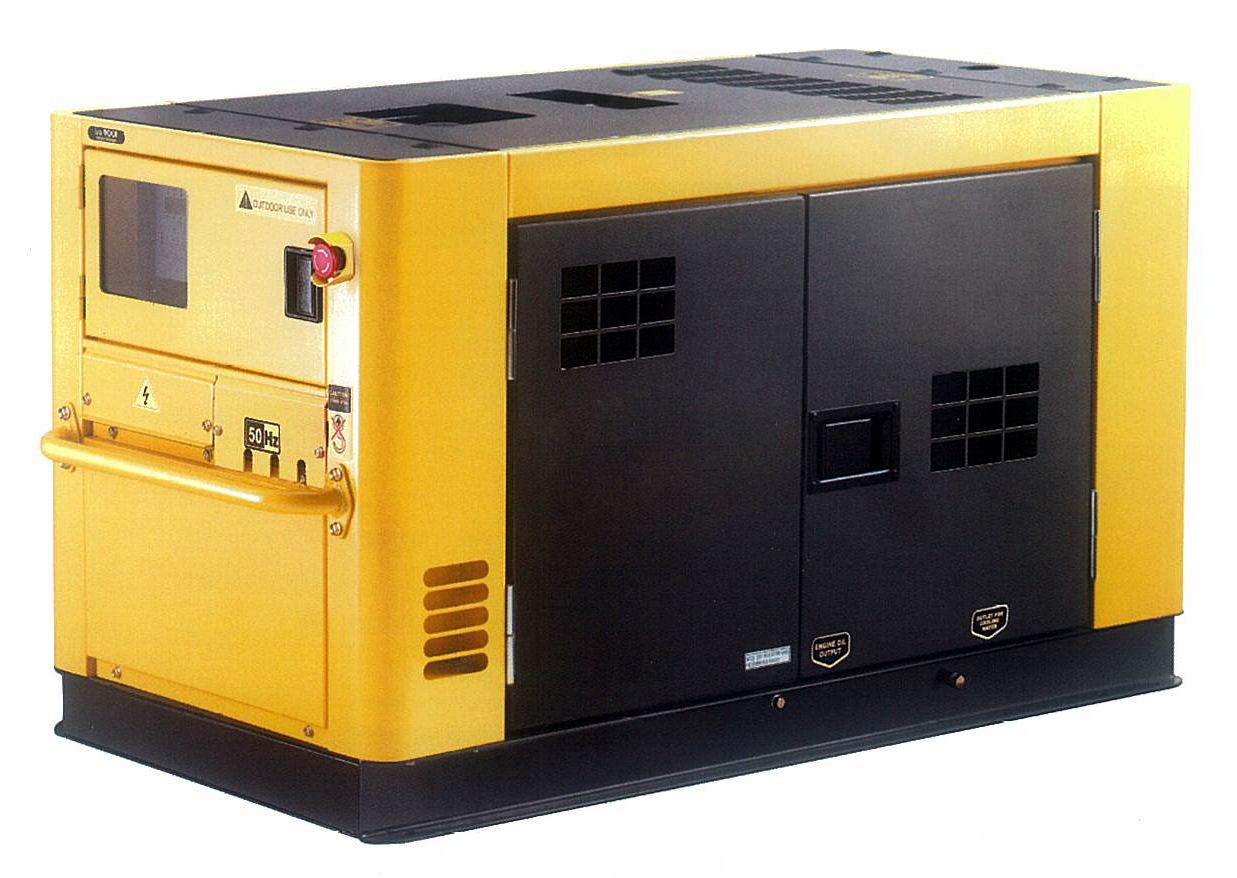

KHC9000SS3 |
Rated frequency (Hz) |
50 60 |
Rate output (kVA) |
7.5 9.0 |
Max output (kVA) |
8.3 10 |
Rated voltage (V) |
230/400 240/416 |
Rated current (A) |
10.8 12.5 |
Rated rotation speed (rpm) |
1500 1800 |
Phase NO. |
Three phases ¡°Y¡± type connection |
Power factor |
0.8 |
Insulation grade |
F |
Pole number |
4 |
Excitation mode |
Brushless self-excitation and constant voltage (AVR) |
Panel type |
Digital Panel |
Output |
Voltage (V) |
230/400 240/416 |
| Receptacle |
Two single phase receptacles |
| Connection pole |
With |
| DC12V output |
Without |
Noise level (7m) dB(A) |
50Hz:51 60Hz:53 |
Structure type |
Ultra silent |
Engine model |
KH373 |
| Engine type |
Three-cylinder, in-lined four-stroke, swirl type |
| Cylinder NO.-bore*stroke (mm) |
3-73*78 |
| Displacement (ml) |
979 |
| Rated power (kW) |
7.4/1500 9.0/1800 |
| Compression ratio |
23.5:1 |
| Rated rotation speed (r/min) |
1500 1800 |
| Cooling system |
Water cooled |
| Lubrication system |
Pressure splashed |
| Starting system |
Electric starter |
| Fuel type |
0# (summer)-10# (winter)-35# (chillness) diesel |
| Capacity of cooling water (L) |
6.4 |
| Lube capacity (L) |
4.5 |
| Starting motor capacity (V-kW) |
12V 1.5kW |
| Charging generator capacity (V-A) |
14V 35A |
| Battery capacity (V-Ah) |
12V 60AH |
| Fuel consumption (g/kW¡¤h) |
298 |
