Model |

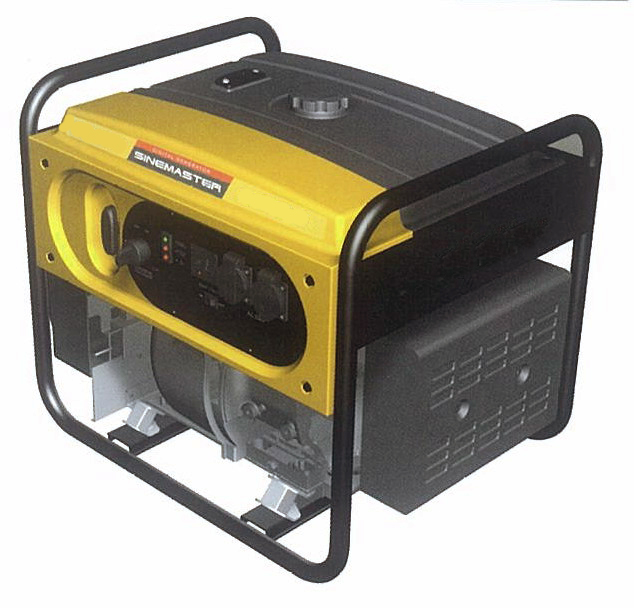

KHC7000Ei/Ec |
Rated frequency (Hz) |
50 60 |
Rate voltage (V) |
115/230 120/240 |
Rated current (A) |
47.8/24 45.8/22.9 |
Rated speed (r/min) |
3600 |
Rated output (kVA) |
5.5 |
Max output (kVA) |
6.0 |
DC output |
12V-8.3A |
Phase NO. |
Single |
Current circuit breaker |
Without |
Structure type |
open frame |
Fuel capacity (L) |
25 |
Set fuel consumption (g/kw h) |
500 |
Continuous running time (hr) (rated output ) |
7 |
Noise level (zero load-full load) dB (A)/7m |
70-75 |
Overall dimension: L*W*H (mm) |
614*500*534 |
Net weight (kg) |
75 |
Starting system |
Recoil starter & Electric stareter |
Fuel type |
Automotive unlead gasoline |
Lube oil type |
SAE 10W30 (above CC grade) |
| Engine model |
KG390 |
| Engine type |
Single cylinder, four-stroke, air-cooled,OHV, gasoline engine |
| Bore*Stroke |
88*64 |
| Displacement (ml) |
389 |
| Compression ratio |
8.5 |
| Rated power[kW(Hp)/(r/min)] |
7.7/3600 |
| Lgnition system |
T.C.I |
| Spark plug |
F6RTC/WR7DC |
| Lowest fuel consumption (g/kW.h) |
374 |
