Model |

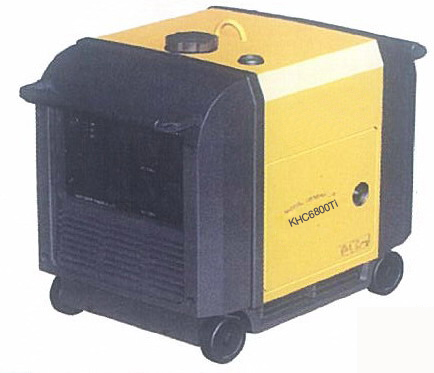

KHC6800Ti |
Rated frequency (Hz) |
50 60 |
Rate voltage (V) |
230/115 120/240 |
Rated current (A) |
21.7/39.1 20.8/41.7 |
Rated speed (r/min) |
3600 |
Rated output (kVA) |
4.5 |
Max output (kVA) |
5.0 |
DC output |
12V-8.3A |
Phase NO. |
Single |
Current circuit breaker |
Without |
Structure type |
Silent |
Fuel capacity (L) |
16 |
Set fuel consumption (g/kw h) |
360 |
Continuous running time (hr) (rated output ) |
7 |
Noise level (zero load-full load) dB (A)/7m |
68-70 |
Overall dimension: L*W*H (mm) |
900*480*600 |
Net weight (kg) |
120 |
Starting system |
Electric stareter |
Fuel type |
0# (summer), -10# (winter) diesel |
Lube oil type |
SAE 10W30 (above CC grade) |
| Engine model |
KH186FA |
| Engine type |
Single cylinder, four-stroke, air-cooled, diesel engine |
| Bore*Stroke |
86*72 |
| Displacement (ml) |
418 |
| Compression ratio |
19 |
| Rated power[kW(Hp)/(r/min)] |
6.3/3600 |
| Lowest fuel consumption (g/kW.h) |
281.5 |
