Model |

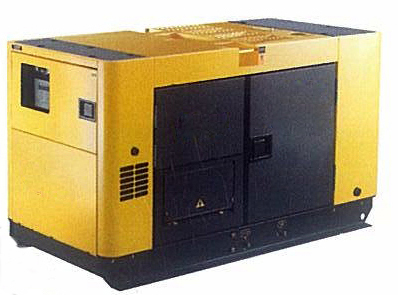

KHC100SS3 |
Rated frequency (Hz) |
50 60 |
Rate output (kVA) |
80 100 |
Max output (kVA) |
85 105 |
Rated voltage (V) |
230/400 240/416 |
Rated current (A) |
115 138.8 |
Rated rotation speed (rpm) |
1500 1800 |
Phase NO. |
Three phases ¡°Y¡± type connection |
Power factor |
0.8 |
Insulation grade |
H |
Pole number |
4 |
Excitation mode |
Brushless self-excitation and constant voltage (AVR) |
Panel type |
Digital Panel |
Output |
Voltage (V) |
230/400 240/416 |
| Receptacle |
Two single phase receptacles |
| Connection pole |
With |
| DC12V output |
Without |
Overall dimension: L*W*H (mm) |
2700*1150*1500 |
Dry weight (Kg) |
1680 |
Working assorting weight (Kg) |
1820 |
Noise level (7m) dB(A) |
50Hz:51 60Hz:53 |
Structure type |
Ultra silent |
Engine model |
KH6105ZG |
| Engine type |
Four-cylinder, in-lined, four-stroke, direct injection, turbocharged |
| Cylinder NO.-bore*stroke (mm) |
6-105*125 |
| Displacement (ml) |
6494 |
| Rated power (kW) |
66/1500 81/1800 |
| Compression ratio |
17.5:1 |
| Rated rotation speed (r/min) |
1500 1800 |
| Cooling system |
Water cooled |
| Lubrication system |
Pressure splashed |
| Starting system |
Electric starter |
| Fuel type |
0# (summer)-10# (winter)-35# (chillness) diesel |
| Capacity of cooling water (L) |
45 |
| Lube capacity (L) |
18.5 |
| Starting motor capacity (V-kW) |
24V 4.5kW |
| Charging generator capacity (V-A) |
28V 25A |
| Battery capacity (V-Ah) |
12V 120AH*2 |
| Fuel consumption (g/kW¡¤h) |
250 |
| Fuel tank capacity (L) |
110 |
