Model |

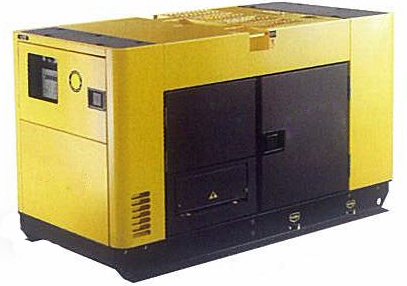

KHC40ST3 |
Rated frequency (Hz) |
50 |
Rate output (kVA) |
38 |
Max output (kVA) |
40 |
Rated voltage (V) |
230/400 |
Rated current (A) |
54.8 |
Rated rotation speed (rpm) |
3000 |
Phase NO. |
Three phases ¡°Y¡± type connection |
Power factor |
0.8 |
Insulation grade |
H |
Pole number |
2 |
Excitation mode |
Brushless self-excitation and constant voltage (AVR) |
Panel type |
Digital Panel |
Output |
Voltage (V) |
230/400 |
| Receptacle |
Two single phase receptacles |
| Connection pole |
With |
| DC12V output |
Without |
Overall dimension: L*W*H (mm) |
2250*950*1300 |
Dry weight (Kg) |
960 |
Working assorting weight (Kg) |
1060 |
Noise level (7m) dB(A) |
62 |
Structure type |
Super silent |
Engine model |
KH493G-1 |
| Engine type |
Four-cylinder, in-lined, four-stroke,direct injection |
| Cylinder NO.-bore*stroke (mm) |
4-93*102 |
| Displacement (ml) |
2771 |
| Rated power (kW) |
40/3000 |
| Compression ratio |
18.2:1 |
| Rated rotation speed (r/min) |
3000 |
| Cooling system |
Water cooled |
| Lubrication system |
Pressure splashed |
| Starting system |
Electric starter |
| Fuel type |
0# (summer)-10# (winter)-35# (chillness) diesel |
| Capacity of cooling water (L) |
10 |
| Lube capacity (L) |
8.5 |
| Starting motor capacity (V-kW) |
12V 2.8kW |
| Charging generator capacity (V-A) |
12V 50A |
| Battery capacity (V-Ah) |
12V 80AH |
| Fuel consumption (g/kW¡¤h) |
272 |
| Fuel tank capacity (L) |
95 |
