Model |

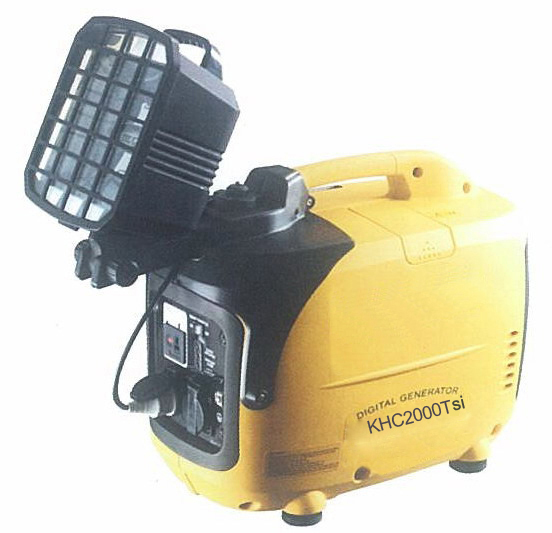

KHC2000Tsi |
Rated frequency (Hz) |
50 60 |
Rate voltage (V) |
230 120/240 |
Rated current (A) |
7 13.3/6.7 |
Rated speed (r/min) |
4500 |
Rated output (kVA) |
1.6 |
Max output (kVA) |
2.0 |
DC output |
12V-8.3A |
Phase NO. |
Single |
Current circuit breaker |
Without |
Structure type |
Portable,with spotlight |
Fuel capacity (L) |
3.5 |
Set fuel consumption (g/kw h) |
550 |
Continuous running time (hr) (rated output ) |
3.5 |
Noise level (zero load-full load) dB (A)/7m |
54-59 |
Overall dimension: L*W*H (mm) |
660*300*425 Spotlight; 350*270*340
|
Net weight (kg) |
23.5 |
Starting system |
Recoil starter |
Fuel type |
Automotive unlead gasoline |
Lube oil type |
SAE 10W30 (above CC grade) |
| Engine model |
KH105 |
| Engine type |
Single cylinder, four-stroke, OHC, gasoline engine |
| Bore*Stroke |
58*40 |
| Displacement (ml) |
105.6 |
| Compression ratio |
8.5 |
| Rated power[kW(Hp)/(r/min)] |
2.2/4500 |
| Lgnition system |
T.C.I |
| Spark plug |
A7RTC/UR5 |
| Lowest fuel consumption (g/kW.h) |
420 |
