Model |

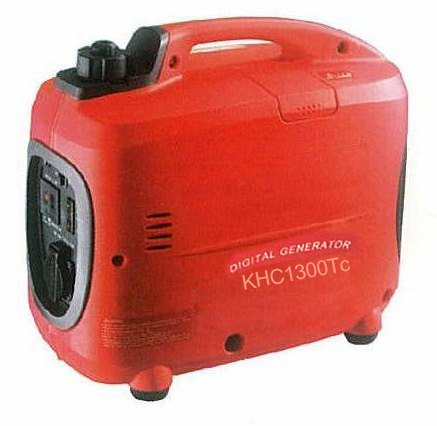

KHC1300Tc |
Rated frequency (Hz) |
50 60 |
Rate voltage (V) |
230 120/240 |
Rated current (A) |
3.7 7/3.5 |
Rated speed (r/min) |
5500 |
Rated output (kVA) |
0.9 |
Max output (kVA) |
1.0 |
DC output |
12V-8.3A |
Phase NO. |
Single |
Current circuit breaker |
Without |
Structure type |
Portable |
Fuel capacity (L) |
2.1 |
Set fuel consumption (g/kw h) |
550 |
Continuous running time (hr) (rated output ) |
4 |
Noise level (zero load-full load) dB (A)/7m |
54-59 |
Overall dimension: L*W*H (mm) |
460*248*395 |
Net weight (kg) |
14 |
Starting system |
Recoil starter |
Fuel type |
Automotive unlead gasoline |
Lube oil type |
SAE 10W30 (above CC grade) |
| Engine model |
Special for digital generator |
| Engine type |
Single cylinder, four-stroke, OHV, gasoline engine |
| Bore*Stroke |
43.5*36 |
| Displacement (ml) |
53.5 |
| Compression ratio |
8.5 |
| Rated power[kW(Hp)/(r/min)] |
1.3/5500 |
| Lgnition system |
T.C.I |
| Spark plug |
A7RTC/UR5 |
| Lowest fuel consumption (g/kW.h) |
420 |
