KHCK-BM-01C Multifunctional Jolt-squeeze Type Wall & Floor Brick Forming Machine |
 |
 |
I) Techincal specification
1.Once shaping number: 30 bread bricks ( 198 X 98 X60MM )
2.Output in 8 hours: 36000 bread bricks
3. Exciting force: 68KN
4. Frequency of shock: 5000time / minute
5. Amplitude: 15mm
6. Noise: 95db ( A )
7. Frequency time: about 3 second / time
8. Forming speed: 24second / time
9. Measurement: 3000 X 2200 X2900 MM
10. Installed capacity: 15.5KW
11.Weight: 4000KG
12. Max pressure: 10MT
II) Character
1.Improve production efficiency, make the cost lower.
2. Multifunctional machine, mould can be changed frequently.
3.The machine is four post orinted, patent lengthen orinted tube, solided construction.
4. Full set equipment, more mechanization, save labour.
5.Mould synchronization make sure the same quality products, finished products rate high.
6.Autumatic input, output plate, material, and shocking. |
| |
|

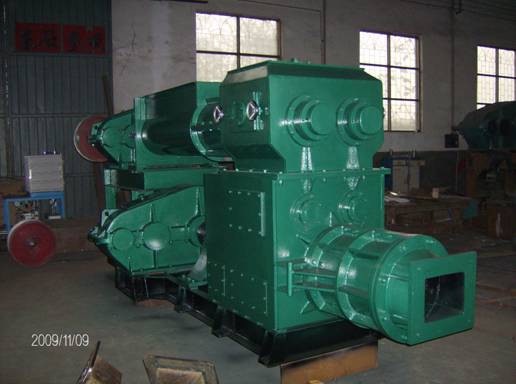

KHCK-JZQ400 VACUUM CLAY BRICK MACHINE |
|
 |
1. KHCK-JZQ400 Vacuum Clay Brick Machine
1) Applications
It can be used to make clay brick (240*115*53mm) and porous brick (240*115*90mm). Raw materials such as soil purification through vacuum after entering the fuel tank from the lower auger extrusion molding, when the machine with different models, can produce various specifications of the porous brick.
2) Features
* With good design, newest technology, work stably, short install cycle
* Low waste for the power, save cost.
* Materials could be clay, coal ash power, shale etc. Also could including the polystyrene and other chemicals, but not over 20% of each piece.
* Separate mainframe and spare parts, more mechanization, save labor.
3) Specifications
Item |
Unit |
KHCK-JZQ400 |
Capacity |
Standard brick/hour |
10000-13000 |
Extrude pressure |
Mpa |
1.5-2.5 |
Vacuum grade |
Mpa |
≥0.092 |
Power |
KW |
75-90 |
Weight |
Kg |
10.5 |
Power of the Vacuum Bump |
KW |
11 |
Speed of the Knife |
r/min |
45-48 |
Packing size |
mm |
5100*1400*2180 |
|
2.
1) Full set machinery lines
| No. |
Name |
Model |
Size
(mm) |
Power
(KW) |
Qty |
Weight
(Kg) |
1 |
Material feeder |
ZQ70 |
5000*1400*1400
10-50 m3 /h |
7.5 |
1 |
2500 |
2 |
Conveyer |
Length:8m |
8000*1000*400
50 m3 /h |
3-4 |
3 |
1000 |
3 |
Double roll crusher |
600*700 |
2000*1000*1200
30-40 m3 /h |
18.5 |
1 |
800 |
4 |
Double shaft blender |
SJ300 |
4200*1200*850
30-40 m3 /h |
22-25 |
1 |
2500 |
5 |
Mainframe |
JZQ400 |
5100*1400*2180 |
75 |
1 |
10500 |
6 |
Clay strip cutter |
17pcs |
2500*650*1140
Speed 1.5m/s |
1.1 |
1 |
300 |
7 |
Flan cutter |
19pcs |
1600*1400*1100
19pcs/time,35times/min |
2.2 |
1 |
700 |
8 |
Automatic flan conveyer |
|
20000*400*1200
Length20m |
7.5 |
1 |
3000 |
9 |
Automatic stacker |
QD-2 |
1600*1400*1100 |
7.5 |
1 |
150 |
2) Accessories for two years:
| No. |
Name |
Remarks |
Qty
(pcs) |
Weight
(Kg) |
1 |
Cutter |
3month refine once |
2 |
1000 |
2 |
Blender |
Cutter |
30 |
180 |
3 |
Blender |
Support frame |
2 |
800 |
4 |
Flan cutter |
8parts a set |
2(set) |
150 |
5 |
JZQ400clutch |
36parts a set |
1(set) |
180 |
6 |
Blender clutch |
36parts a set |
1(set) |
150 |
7 |
Steel wire |
|
6 |
120 |
8 |
Conveyer wheel |
102pcs |
3 |
60 |
9 |
Blender wheel |
38pcs |
2 |
120 |
10 |
JZQ400 brick machine |
Spare part |
1 |
100 |
11 |
JZQ400 brick machine |
Press mud board |
4 |
50 |
12 |
Coal grinder |
Hummer(24pcs) |
1(set) |
50 |
3) Reference products photo for the production line:
1 |
Material Feeder
|
2 |
Conveyer
|
3 |
Double Roll Crusher
|
4 |
Double Shaft Blender
|
5 |
Mainframe |
6 |
Clay Strip Cutter
|
7 |
Flan Cutter
|
8 |
Automatic Flan Conveyer
|
9 |
|
10 |

|
11 |
|
12 |
|
4) Working process of Clay Brick Machine:
Material feeder→ Conveyer→ Double roll crusher→ Double shaft blender→ Mainframe→ Clay strip cutter→ Flan cutter→ Conveyer→ Flan divider→ Drying(drying tunnel)→ Fire(sinter tunnel)→ Finished product |
| |
|
|
