Portable and high frequency medical diagnosis X-ray machine
  • The first technology in China
  • The high performance X-ray machine in the world
  • Fairly good price than Germany, Japan and Korea
  • Adjustable design, suitable for your special request.
Advantages:
  • Integrated with high frequency and high voltage generator, main control system, intelligent computer system, numeric display and beam limited device, it is designed and manufactured precisely and compactly, more flexibly and widely used.
  • Using the technique of inverse converter for HF and computer-controlled closed-loop adjusting System, stable high voltage output is generated and high-quality images can be obtained.
  • Using the buttons of KV and mAs to adjust the photographic parameters, display them on high-brightness LEDs, interlock protection conditions is determined by software, which is convenient for doctors to operate.
  • X-ray Tube is placed in lead cylinder which can effectively shield the gamma leakage and protect environment and operators’ safety.
  • 20 radiographic conditions are preset and can be customized according to user requirements.
  • Photography Time is controlled precisely by computer, host will automatically delay 10 seconds at the end of photography which can effectively control photography interval, avoid overloading and achieve automatic protection.
  • Hand-controlled and remote-controlled photography function
  • Using computer to monitor fault sources, the computer will cut all outputs, display fault code and identify the fault reasons if a fault appears.
  • Suitable for all kinds of cassettes.
  • The ordinary table or bed is OK for supine films, no special x-ray table needed.
Structural performance:
  • Radiography can be launched after X-ray apparatus is suspended on the frame.
  • The fuselage of X-ray apparatus is suspended on the frame, can rotate left and right at larger than or equal to ±90°, X-ray tube head can rotate at 90°which is easy to project in different angles.
  • The arm can move up and down, has Servo-balance and lock-up device.
  • The fuselage of X-ray apparatus weighs 19Kg, is more convenient to carry. The frame weighs 23 Kg, is more flexible to move at different places.
  • The frame can be disassembled and folded quickly, then putted into trunk, which can make out-call more convenient.
Technical Specification:
  • Max. photograph tube voltage: 90kV/22mA
  • Max. photograph tube current: 50mA
  • Max. Output: 2.0kW
  • Exposal time: 0.02s ～ 4.0s
  • MAS scope: 0.5mAs ～ 160mAs with 46 alternations
  • Voltage scope: 40~90kV KV with 26 alternations
  • Main frequency: 30kHz
  • Max. light field: ≤35CMX35CM @65CM SID
  • Min. light field: ≤5CMX5CM @100CM SID
  • Focus size: 2.3mm
  • Power: 220V ± 10% single phase alternating current with the frequency of 50Hz ± 1Hz
  • Resistance: ≤ 1.0 Ω
  • Power capability: ≥ 2.5kVA
  • Electricity protection type: Class I, Type B
  • Weight: 19kg

Solution of the problem of imaging fat people with this machine

The usage of Anti-scatter grid can settle the problem of imaging fat people successfully.

  • The grids have superior performance and offer less absorption, which can greatly reduce the scattered radiator producing clearer and diagnostically superior. It is widely used in the Chest X-rays.
  • It is produced by Korea producer.

Specification:

  1. Size: 15*18mm
  2. focus ranges:1.8M

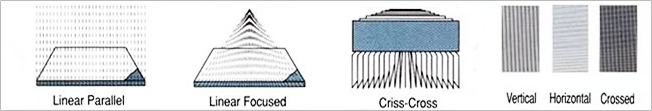

lead strip positioning

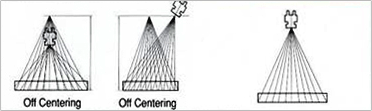

Incorrect Application Of Focused Grid; correct Application Of Focused Grid Space Between Strips
